1500V DC Photovoltaic Blade Knife Fuses
Rated voltage: DC1200V/DC1500V

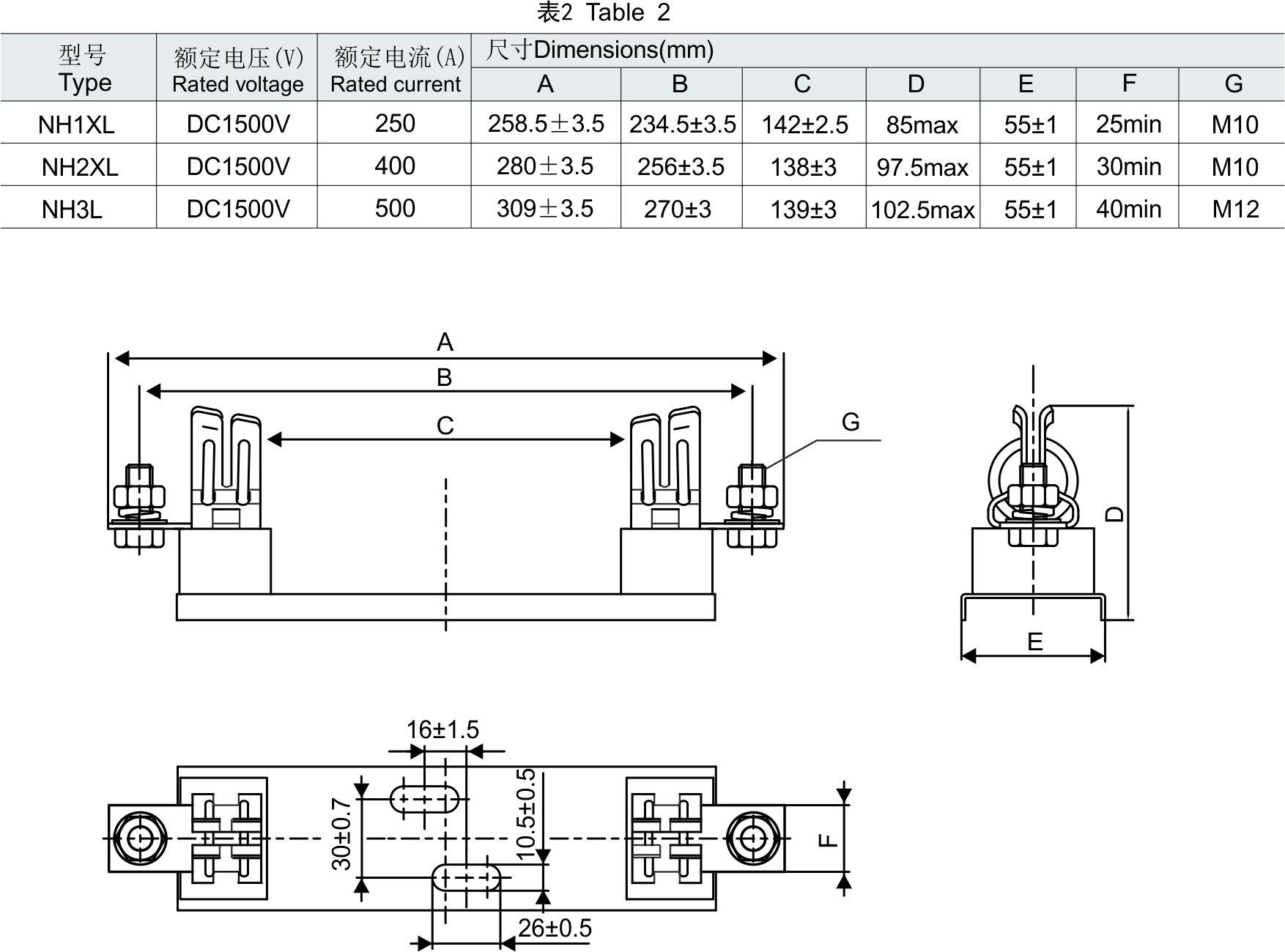

Rated current: See table 1 and 2
Breaking capacity：50kA
Standard： IEC60269-1-6
Use of the product:The product is used for photovoltaic system protection.
Features:
a.Good interchangeability；
b.Good low fault current interrupting capability；
c.High breaking capacity and low power consumption;
d.Good thermally induced drift level.
Normal working environment
1)The upper ambient temperature does not exceed 40℃,the lower limit does not exceed -5℃.
2)The air is clean.Relative humidity does not exceed 50% when the ambient temperature is 40℃.
Higher relative humidity at lower temperatures . Note the condensation that may occur under these
conditions.
3)The altitude of the installation site does not exceed 2000m.
